With an outer diameter of around 780mm and a section width of 180mm, it provides a large contact area with the ground (approximately 0.03 m²), distributing weight evenly to minimize surface damage. This tire is specifically engineered to meet the demands of AGVs and heavy machinery in sectors like steel production and construction, offering consistent performance even under maximum load conditions.
Wear resistance: The tire's rubber compound, tested to ASTM D5963 standards, exhibits a wear rate of less than 0.1 mm per 100 hours of operation on concrete surfaces, ensuring long-term performance in high-traffic areas.
Puncture-proof: A solid core eliminates vulnerability to punctures from sharp objects such as metal scraps, nails, or gravel—common hazards in industrial yards and construction sites.
Long service life: Designed to last 8,000+ operational hours in heavy-duty applications, it reduces the frequency of tire replacements, lowering total ownership costs by 30-40% over 5 years.
High stability: The reinforced sidewall design (12mm thickness) resists lateral deformation during turns, maintaining stability even when AGVs navigate curves at speeds up to 15 km/h with full loads.
No inflation required: Eliminates the risk of pressure-related failures, which are responsible for 40% of pneumatic tire downtime in heavy-industry settings.
Heavy machinery: Supporting the movement of industrial cranes, concrete mixers, and material handlers in construction sites and mining operations.
AGVs in heavy industry: Transporting heavy components such as engine blocks (automotive manufacturing), steel coils (steel mills), and precast concrete panels (construction prefabrication).
Industrial logistics: Moving heavy cargo—including palletized steel, machinery parts, and bulk raw materials—in warehouses and distribution centers with floor load capacities exceeding 5 tons per m².
Q: What tread pattern is recommended for rough surfaces?
A: The lug tread pattern, with 10mm deep, zigzag grooves, is recommended for rough or slippery surfaces. It provides 25% better traction than smooth tread on gravel, wet concrete, or uneven asphalt.
Q: What is the operating temperature range of the tire?
A: It maintains structural integrity and performance from -20℃ to +70℃. In temperatures above 70℃, reduced flexibility may be observed, but no permanent damage occurs.
Q: How does the cushioning performance of this solid tire compare to pneumatic tires?
A: Cushioning performance is reduced compared to pneumatic tires, with a vibration transmission rate 30-40% higher. For this reason, it is recommended for use on flat surfaces (maximum 2° inclines) and for transporting robust goods rather than fragile items.

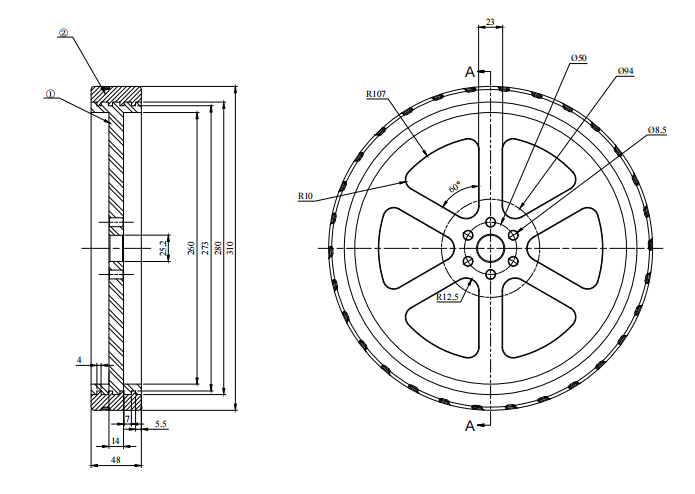

Item | Specification |
Tire Model | AGV |
Tire Type | Solid Tire (Non-Pneumatic Tire) |
Outer Diameter (OD) | Approx.310mm |
Section Width (SW) | Approx. 48mm |
Load Capacity | Single Tire Load: Approx. 800-1000 kg |
Maximum Speed | Approx. 20-30 km/h (Depends on application and load) |
Tread Pattern | - Smooth Tread: Suitable for smooth surfaces (e.g., indoor use) |
Material | - Carcass: High-strength rubber |
Operating Temperature Range | -20°C to +70°C |
Color | Typically black, customizable upon request |
Installation Method | Requires professional hydraulic press for mounting to ensure tight fit |
Applications | - AGV Robot |
Features | - Wear-resistant, puncture-proof |
Certifications | Complies with ISO 9001, CE, and other international standards |
